Associated Antenna Products

In view of the good foundation of cooperation and the complementary advantages of both sides, SUNCOM and CETC54 have reached a long-term cooperation agreement on manufacturing and marketing of the following antennas

  • TT&C Station Antennas
  • Multi-band Antenna
  • Remote Sensing Satellite Receiving Antenna
  • Meteorological Radar Antenna
  • Radio Telescope Antenna
TT&C Station Antennas
Features
  • Tracking objects over zenith.
  • High accuracy angle measurement.
  • High accuracy pointing and tracking.
  • Antenna calibration and error modification .

18-Meter S-band TT&C Station

Multi-band Antenna:

Antenna Type

  • 16m L/S/Ku-band Antenna,13m C/Ku, S/C, L/S/C, C/X/Ku-band antenna
  • 7.3m L/S/X, S/X/Ku-band antenna
  • 6.2m S/C, C/Ku-band antenna
  • 5.4m L/X-band antenna
  • 5m C/Ku-band antenna
  • Customized is also accepted.
7.3m C/Ku dual-band Full-motion antenna 16m L/S/Ku-band full-motion antenna

Remote Sensing Satellite Receiving Antenna

General

  • Diameter��
    • Fixed Station Antenna�� 4.2m, 5.4m, 6.2m, 7.3m, 9m, 12m
    • Vehicular Antenna��5.4m, 6.2m, 7.3m
  • Antenna type��Shaped Ring-focus/ Cassegrain antenna
  • Operational frequency��L,S,X, L/S, L/X or S/X dual-band, L/S/Ku, L/X/Ku, S/X/Ku tri-band

Feature

  • Remote sensing satellite high speed data receiving applications
  • El-Az-T mount or X-Y mount
  • Operates in L, S, X band or L/S,L/X, S/X dual-band or L/S/Ku, L/X/Ku, S/X/Ku tri-band
  • Operation mode: Manual control, command control, program tracking, monopulse tracking
  • Tracking mode��Manual, program and monopulse tracking
  • Monitoring and interface: Communicated with monitoring computer, RS232/422/RS485 or network interface
  • Power supply: 220V AC��10%��380V AC��10%��50Hz��5%
12m S/X dual-band Antenna 4.2m and 5.4m L/X-band Antenna with X-Y Mount with E-A-T Three Axis Mount

Meteorological Radar Antenna

Meteorological radar antenna is used for prediction of disastrous weather. It operates in S/C band and adopts standard parabolic reflector with turntable AZ-EL antenna mount. Driver system provides both AC and DC mode for 24 hour uninterrupted and unattended operation.

Radio Telescope Antenna

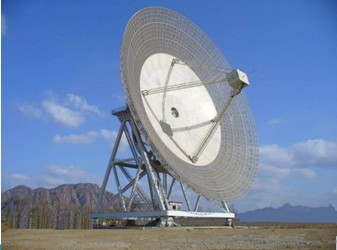

35m, 50m, 65m S/X/KA band Radio Telescope Antenna
