With 20 years of professional technology and rich experience in microwave, high-pcision turntable, and servo control, SUNCOM is committed to the research and development, production, sales, and service of high-pcision parabolic weather radar antennas, phased array weather radar antennas, and servo control systems. Currently, the radar antenna products developed and under production include:
|
|

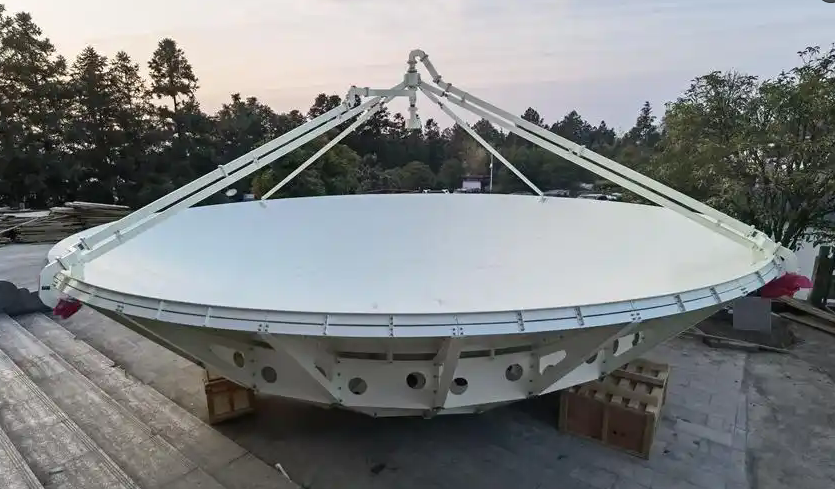

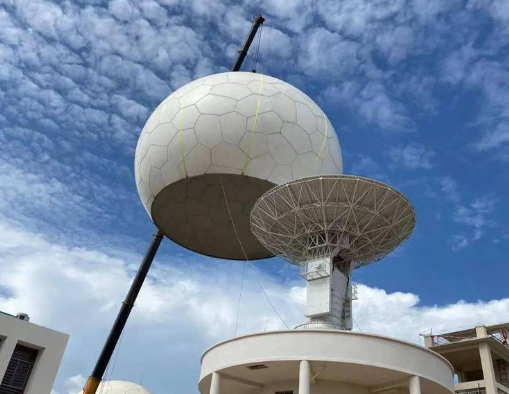

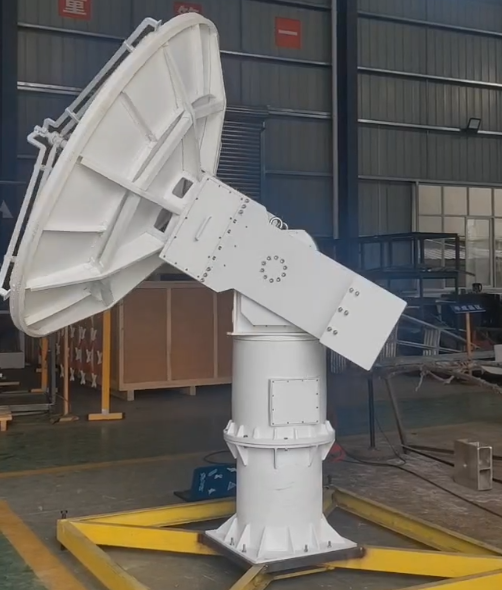

Forward Feed Parabolic Radar Antenna
2.4-meter X-band dual polarization Doppler weather radar antenna system
| Part Name | Technical specification |
|---|
| Radome |
Frequency (MHZ) :9300-9500
Diameter (meter):4.5
RF Loss (dB):≤0.3
Max winds (m/s):≦50m/s ,60m/s (gust)
|
| Antenna |
Reflector diameter:2.4m
Antenna type: Forward feed parabolic antenna
The first side lobe ≤-28dB
Beam width:≤1°
Gain:≥44dB
Dual Polarization Operation Mode: Simultaneous transmission of linear horizontal and linear vertical polarization (STAR Mode) or transmit horizontal and receive horizontal and vertical polarization
Pointing range (azimuth): 0° - 360°
Pointing range (elevation): -2° - 92°
Az/EL rate max :60°/sec
Acceleration:20°/sec2
|
| Servo Control system |
Positioning accuracy:± 0.05°
Angular encoder resolution:≥16bit
Operation mode: Standby, Volume scan, Azimuth Sector scan, RHI mode, Designate mode, Manual / Calibration mode
|
4.5-meter C band dual polarization Doppler weather radar antenna system
| Part Name | Technical specification |
|---|
| Radome |
Frequency (MHZ) :5300-5700
Diameter (meter):7.2
RF Loss (dB):≤0.3
Max winds (m/s): ࣘ50m/s ,60m/s (gust)
|
| Antenna |
Reflector diameter:4.5m
Antenna type: Forward feed parabolic antenna
The first side lobe ≤-29dB
Beam width:≤1°
Gain:≥45dB
Dual Polarization Operation Mode: Simultaneous transmission of linear horizontal and linear vertical polarization (STAR Mode) or transmit horizontal and receive horizontal and vertical polarization
Pointing range (azimuth): 0° - 360°
Pointing range (elevation): -2° - 92°
Az/EL rate max :36°/sec
Acceleration:18°/sec2
|
| Servo Control system |
Positioning accuracy:± 0.05°
Angular encoder resolution:≥16bit
Operation mode: Standby, Volume scan, Azimuth Sector scan, RHI mode, Designate mode, Manual / Calibration mode
|
8.5/9-meter S-band dual polarization Doppler weather radar antenna system
| Part Name | Technical specification |
|---|
| Radome |
Frequency (MHZ) :2700-3000
Diameter (meter):12
RF Loss (dB):≤0.3
Max winds (m/s): ≦50m/s ,60m/s (gust)
|
| Antenna |
Frequency (MHZ) :2700-3000
Diameter (meter):12
RF Loss (dB):≤0.3
Max winds (m/s): ≦50m/s ,60m/s (gust)
Reflector diameter:8.5 or 9m
Antenna type: Forward feed parabolic antenna
The first side lobe ≤-28dB
Beam width:≤1°
Gain:≥45dB
Dual Polarization Operation Mode: Simultaneous transmission of linear horizontal and linear vertical polarization (STAR Mode) or transmit horizontal and receive horizontal and vertical polarization
Pointing range (azimuth): 0° - 360°
Pointing range (elevation): -2° - 92°
Az/EL rate max :36°/sec
Acceleration:15°/sec2
|
| Servo Control system |
Positioning accuracy:± 0.05°
Angular encoder resolution:≥16bit
Operation mode: Standby, Volume scan, Azimuth Sector scan, RHI mode, Designate mode, Manual / Calibration mode
|

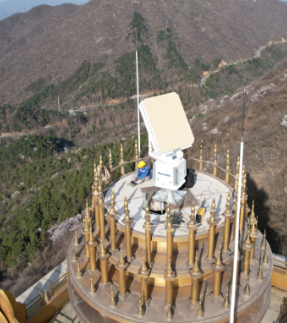

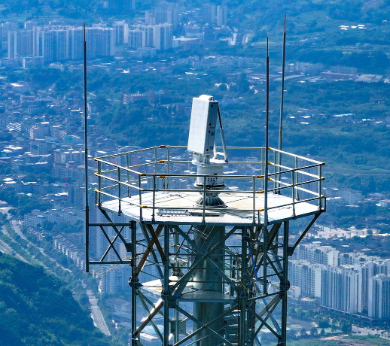

Phased Array Weather Radar Antenna
 |
 |
 |
- X-band dual polarization phased array weather radar antenna
- C -band dual polarization phased array weather radar antenna
Integrated Solution For Radar System
SUNCOM not only provides radar antenna systems for users, but also offers a complete set of services from pre-sales, radar system design, product selection to after-sales installation, testing, maintenance, and training based on its own technical strength and rich experience in radar system integration. The company is committed to providing integrated solutions for users in the fields of meteorological disaster pvention, aviation meteorology, water conservancy rain measurement, low altitude flight, rain and hail pvention, forest fire pvention, and low altitude security.
|
 |
 |
 |
 |
 |
 |
- C/X/S band dual polarization Doppler weather radar

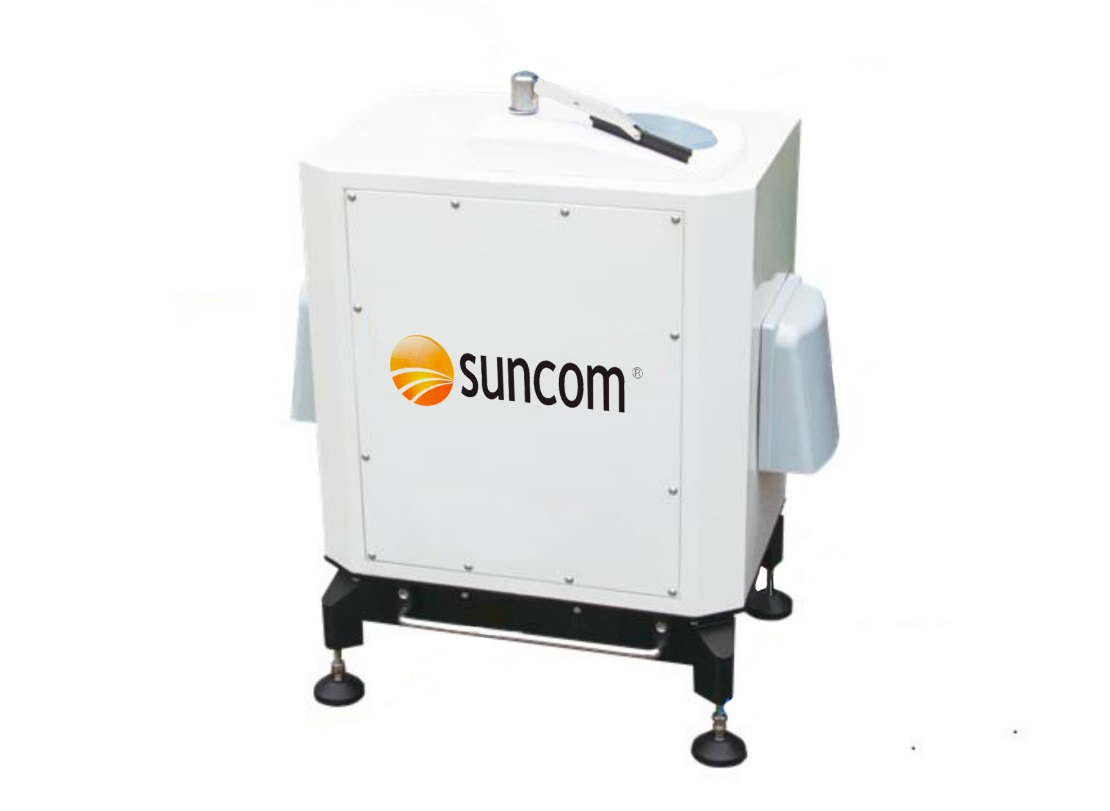

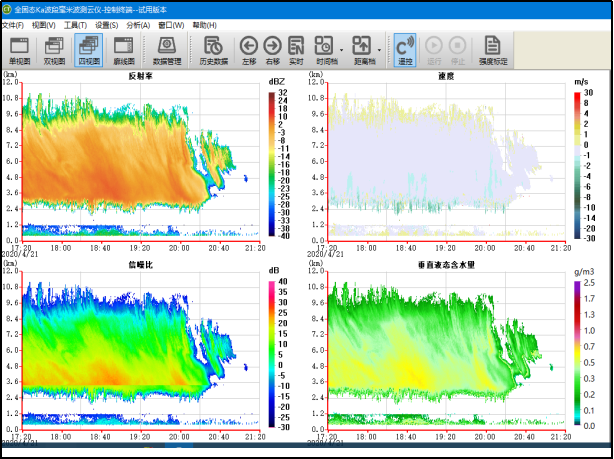

- All-solid-state Ka-band millimeter-wave cloud radar
- Ka-band dual-polarization cloud Radar
- C/X-band dual polarization phased array weather radar
- X-band pcipitation and hail suppssion phased array radar
- X-band dual polarized phased array rain radar
- X-band phased array low altitude security radar
|
Please send email to sales@chinasuncom.com to check the available productions, latest datasheet and prices. SunCom also accept OEM and products customization.
|
